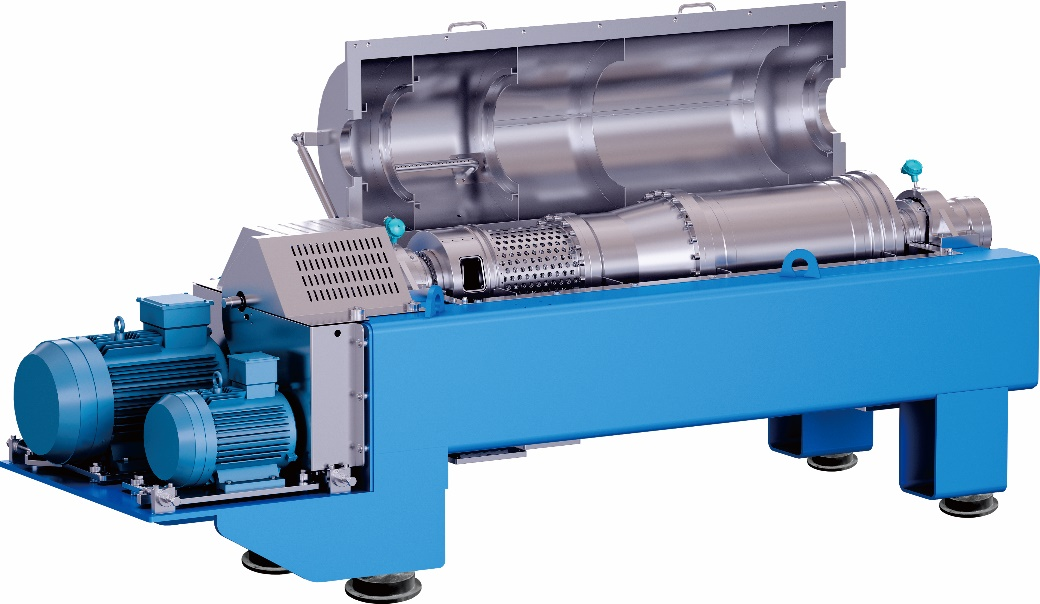

The decanter centrifuge operates as follows: When a sludge-water mixture enters the rotating drum through the feed pipe and screw discharge port, the high-speed rotation generates centrifugal force, driving the heavier solid particles toward the drum wall. The relative motion between the helical conveyor and the drum continuously scrapes off these deposited particles and discharges them through the solids outlet. Meanwhile, the clarified liquid flows smoothly out of the drum via the weir plate.

This highly efficient separation process is achieved through the ingenious design of the differential gear. The differential’s housing is connected to the drum, the output shaft to the screw conveyor, and the input shaft to the auxiliary motor. The main motor drives the drum rotation, which in turn rotates the differential housing. The braking torque generated by the auxiliary motor is transmitted to the screw conveyor via planetary gears at a controlled ratio, ensuring continuous, high-efficiency separation.

Advantages & Features

Decanter centrifuges deliver outstanding performance in sludge-water separation, combining high efficiency, reliability, and automation. Key benefits include:

1. Wide Adaptability

Optimized for diverse separation processes, with adjustable critical components. Suitable for various materials based on site conditions, properties, and process requirements.

2. High Processing Capacity

Capable of 24/7 continuous operation with large throughput and exceptional separation efficiency.

3. Labor Savings

Fully automated operation ensures stability, requiring only one operator per shift with minimal technical demands.

4. Long Service Life

8,000+ hours of trouble-free operation under normal conditions, with a lifespan exceeding 8 years.

5. Compact Design

Small footprint, easy operation, and low-maintenance costs.

6. Comprehensive Safety Protections

Equipped with torque protection, power control, electrical interlocks, and audible/visual alarms to minimize unexpected failures.

7. Full Automation

Automated feeding, separation, and discharging, with remote control via PLC/PC communication.

8. Eco-Friendly Performance

Closed-system operation prevents pollution, maintaining a clean production environment.

9. Superior Corrosion Resistance

Contact parts (drum, screw, housing) are made of high-grade stainless steel or customizable materials for aggressive media.

10. Energy Efficiency

 Variable frequency drive (VFD) technology reduces energy consumption to 1/3–1/2 of conventional centrifuges, with minimal grid impact.

11. Smooth Operation

oPrecision dynamic balancing (rotor + load) ensures vibration-free performance.

Why Choose Our Decanter Centrifuges?
From wastewater treatment to industrial sludge dewatering, our centrifuges enhance productivity while cutting costs. Contact us today for a tailored solution!

(Note: Technical specifications can be customized based on application needs. All data derived from real-world client cases.)
