What Is an Explosion-Proof Bottom Discharge Centrifuge?

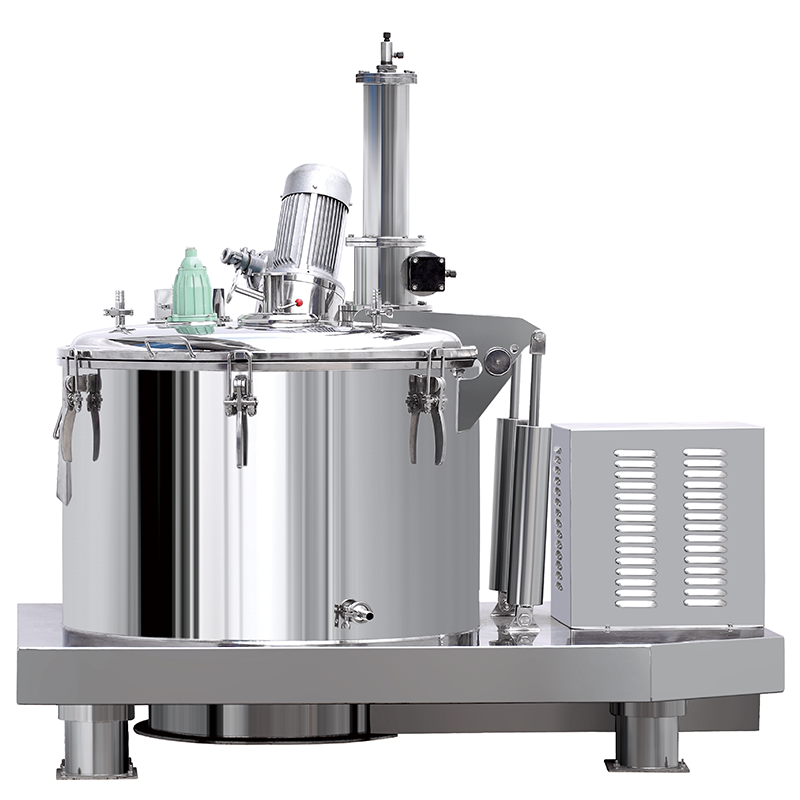

The gas-tight centrifuge is a vertical automatic bottom discharge machine whose process zone is sealed as standard: a hydraulic clamshell cover and a mechanical shaft seal close the basket, so neither vapor nor dust reaches the room during feed, washing, spin-dry or discharge. Discharge is by scraper through a hatch in the base into a sealed receiver, which means a cycle runs unattended without the cover ever being opened. Nitrogen blanketing with online oxygen monitoring, and flameproof execution — a flameproof motor with a flameproof control panel — are specified as options when the solvent can form an explosive atmosphere. A gas-tight centrifuge is therefore the right starting point for toxic, flammable or oxygen-sensitive products, and the level of protection is matched to the actual risk instead of being bought as a package.

Working Principle

Closed feed. Slurry is charged at a controlled rate through a sealed line; the hydraulic cover and mechanical shaft seal keep the process zone closed from the first drop.

Separation and washing. Filtration and cake washing proceed inside the sealed basket, with wash liquor and filtrate leaving through closed lines.

Spin-dry. The basket spins to the required dryness while the controller monitors motor load and temperature.

Inerting, when specified. Where the solvent can form an explosive atmosphere, the sealed zone is purged with nitrogen before feed and oxygen content is verified against the set limit; the interlock prevents a cycle from starting outside that window.

Scraped discharge. A scraper removes the cake through the bottom hatch with no manual handling, and an air-assisted scraper can be specified to clear the residual heel.

6) Monitoring. Temperature, vibration and load are logged — plus oxygen where blanketing is fitted — and the sequence halts safely if any value leaves its window.

Key Features

Sealed as standard — hydraulic clamshell cover and mechanical shaft seal close the process zone, so vapor and dust stay inside during feed, washing and discharge.

Discharge without opening — the scraper drops the cake through a bottom hatch into a sealed receiver, so the cover stays closed for the whole cycle.

Inerting on request — nitrogen blanketing with online oxygen monitoring and interlock, for solvents that can form an explosive atmosphere.

Flameproof execution on request — flameproof motor and flameproof control panel for classified areas; the standard machine uses a standard motor and panel.

Remote and safe operation — PLC control can sit in a separate room, so the operator never needs to stand beside the machine.

No foundation required — vibration-isolated flat plate base suitable for installation on a structural floor.

Repeatable, traceable cycles — feed, wash, spin-dry and discharge run by recipe, with a batch log of temperature, speed and load (plus oxygen where blanketing is fitted) for audits.

Typical Applications

The PGZ gas-tight centrifuge is specified wherever the process liquid is toxic, flammable or oxygen-sensitive, and wherever the plant must be able to show that the product stayed inside the machine:

• pesticide technical· pharmaceutical intermediates· ammonium sulfate· sodium borate· monosodium glutamate· dye intermediates· petrochemical catalysts· fine chemicals with solvent wash

Selection Guide

Not every hazardous application needs the same level of protection. The sealed enclosure is standard; inerting and flameproof execution are added only where the solvent or the area classification calls for them:

Choose the PGZ gas-tight centrifuge when the cake is solvent-wet or the vapor is toxic and the machine must run unattended. Add nitrogen blanketing where the solvent can form an explosive atmosphere inside the basket, and a flameproof motor and panel where your area classification requires them. For aqueous, non-hazardous products the same sealed machine runs without those options at lower cost.

Technical Specifications

Customization & Options

Nitrogen blanketing with oxygen analyser and interlock (optional); flameproof motor and flameproof control panel (optional); Halar, PFA or rubber lining; 316L or duplex product contact parts; static-dissipating filter medium; remote operator station with data logging; sealed discharge to a closed collection system; documentation package for your own safety review.

FAQ

Sealing is standard. Every PGZ leaves the works with a hydraulic clamshell cover and a mechanical shaft seal, so the process zone is closed during feed, washing, spin-dry and discharge. Nitrogen blanketing and flameproof execution are options — the enclosure itself is not.

Only when the solvent can form an explosive atmosphere inside the basket. Blanketing holds oxygen below the limiting concentration, and the controller verifies oxygen before feed is permitted. For aqueous products the sealed machine runs without it.

A flameproof motor and a flameproof control panel, with the rotor grounded and a static-dissipating filter medium fitted. It is specified when your area classification requires it. A flameproof motor on its own does not make a machine safe — the enclosure and the discharge path have to be closed as well, which is why sealing is standard on this machine.

Yes. The flat plate base with vibration isolation can be installed on a suitable structural floor. We confirm floor loading and anchoring against your site drawing before shipment.

A scraper cuts the cake from the basket wall and it drops through a hatch in the base into a sealed receiver; an air-assisted scraper option clears the residual heel. The cover stays closed, so neither vapor nor dust escapes during discharge.

Why Jiangsu Shengli Centrifuge

Jiangsu Shengli Centrifuge Manufacturing Co., Ltd. builds this equipment in a 20000 m2 plant with in-house machining, hard-facing and rotor dynamic balancing. The company holds ISO 9001, ISO 14001 and ISO 45001 certification, CE marking and more than 30 patents, and has supplied machines to customers in over 30 countries. Every unit is balanced and run-tested before shipment, and the balancing report is supplied with the machine.

Request a Quote or a Free Separation Test

Send us a sample of your material and we will run it on a pilot machine, then report the measured moisture, throughput and clarity before you order. Tell us your material and your target, and our engineers will recommend the model, the material of construction and the options that fit.
