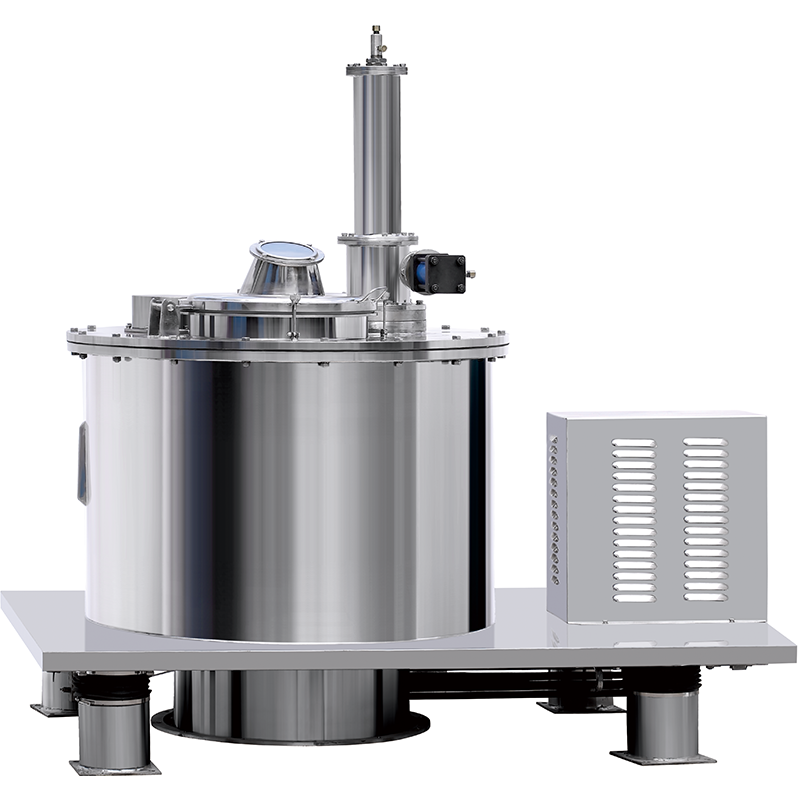

What Is an LGZ Bottom Discharge Centrifuge?

The bottom discharge centrifuge is a vertical batch filter centrifuge that scrapes the dewatered cake off the basket wall and drops it through a hatch in the base of the machine, so the housing never has to be opened during a normal cycle. Slurry is fed into a perforated basket, filtered and washed under centrifugal force, then spin-dried. A hydraulic clamshell cover seals the process zone and a PLC drives the full sequence. Because discharge is bottom-side, a bottom discharge centrifuge can run unattended batch after batch, which is why it dominates pharmaceutical and fine chemical plants where the same product is made repeatedly.

Working Principle

Cover close. The hydraulic clamshell cover closes and interlocks, sealing the process zone.

2) Feed. Slurry is fed at controlled rate until the basket is loaded, with feedback from the filtrate or from a load sensor.

3) Separation. The basket accelerates and the liquid passes the filter medium while solids build on the wall.

4) Wash. Wash liquid is distributed across the cake to displace mother liquor.

5) Spin-dry. Speed is raised to the spin-dry level until residual moisture meets target.

6) Discharge. The scraper advances and cuts the cake off the wall so it falls through the bottom hatch; where a stubborn heel remains, the optional air-assisted scraper blows it clear, and the cover then reopens for the next batch.

Key Features

Controlled by a PLC with preset programs, the unit runs fully automatically with no on-site attendance and monitors the whole cycle: feeding, primary filtration, washing, fine filtration and discharge.

A variable-frequency drive gives a smooth start and an adjustable separation factor.

Uses dynamic braking. This non-contact braking produces no friction dust.

Fully sealed design. Seals use silicone rubber, fluorine rubber and PTFE. The basket interior can be pressurized with nitrogen for protection. An optional oxygen monitoring system meets explosion-proof requirements.

Clean design. An optional online spray-cleaning system keeps the unit clean and fully meets GMP requirements.

Pneumatic components drive all automatic movements for good hygiene.

Uses electromechanical material level control.

An optional air-assisted scraper leaves almost no residual cake in the basket after discharge.

No foundation is required. The machine is compact, neat and easy to clean.

A vibration isolation system with balance weights and high-precision liquid dampers absorbs vibration, causing no disturbance to the floor or surrounding area.

The base balance plate also serves as an operating platform for convenient operation and maintenance.

Comprehensive safety protection: speed detection, over-vibration protection, cover-open protection, and motor overload and overheat protection. The scraper's rotation and lift are controlled both mechanically and electrically, with an interlock between scraper and basket.

Typical Applications

The LGZ bottom discharge centrifuge is specified for repetitive batch production where labor cost, operator exposure and batch-to-batch consistency all matter:

• antibiotics· vitamins· bulk pharmaceuticals· pesticide technical· fine chemicals· dye intermediates· sodium borate· monosodium glutamate

On-site Application

On-site Application

Selection Guide

Compare the options before you specify — the right choice depends on how fragile your crystals are and how much automation you need:

Technical Specifications

Customization & Options

Basket and casing in 304, 316L or higher alloys; Halar, PFA or rubber lining for aggressive liquors; explosion-proof motor and panel; nitrogen blanketing with oxygen monitoring; hygienic execution with CIP/SIP connections; recipe storage for multiple products; remote diagnostics and data logging for batch traceability.

FAQ

No. In normal operation the cover stays closed. The scraper cuts the cake from the basket wall and it falls through the hatch in the base of the housing. The cover is opened only for inspection, filter-medium changes or cleaning.

After the main scrape a thin heel always stays on the wall. The air-assisted scraper breaks that layer away and clears it through the bottom hatch, so the next batch starts from a cleaner basket and the filter cloth is not damaged by repeated hard scraping. It is an option, specified for products that leave a sticky or compact residue.

Yes. The sealed clamshell cover, mechanical shaft seal and optional nitrogen blanketing keep the process zone isolated. With the explosion-proof motor and panel, solvent-wet cakes can be processed safely.

Twenty minutes to about an hour depending on how fast the solids filter and how much wash the product needs. Because the cycle is PLC-controlled, batch times are consistent from one shift to the next.

Not always. With the vibration-isolated execution the machine can be installed on a suitable structural floor. We confirm floor loading and anchor requirements from your site drawing before shipment.

Why Jiangsu Shengli Centrifuge

Jiangsu Shengli Centrifuge Manufacturing Co., Ltd. manufactures this range at its 20000 m2 works, where the critical operations - machining, wear-facing and dynamic balancing - are carried out in house rather than subcontracted. The company is certified to ISO 9001, ISO 14001 and ISO 45001, holds CE marking and more than 30 patents, and exports to over 30 countries. Each machine is run-tested before dispatch and supplied with its balancing record.

Request a Quote or a Free Separation Test

Before you specify, send us your material. We test it on laboratory and pilot machines and report what the separation actually achieves, so the model we recommend is based on measurement rather than assumption. Include your target moisture or clarity figure and we will tell you honestly whether this machine can reach it.
