Product Introduction

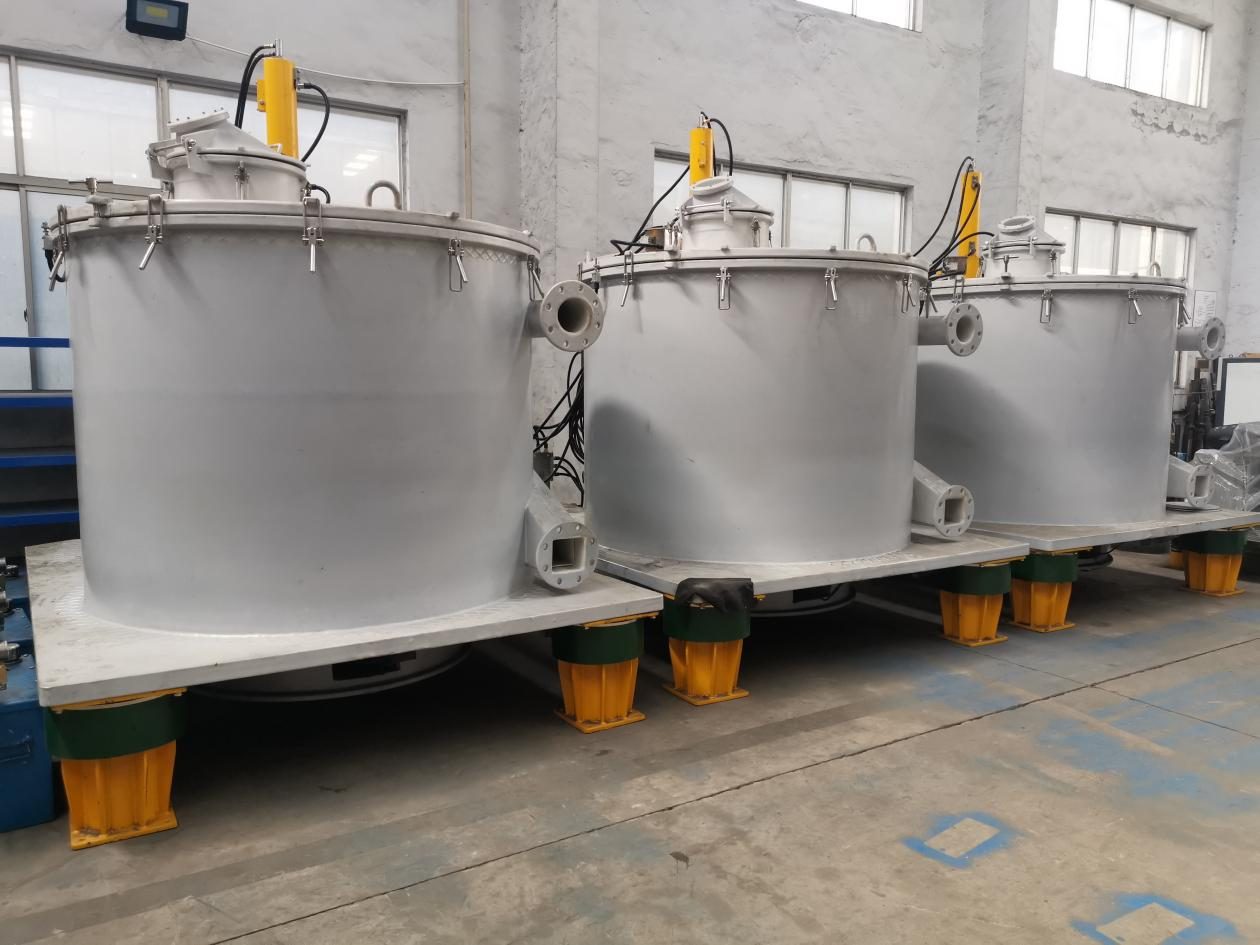

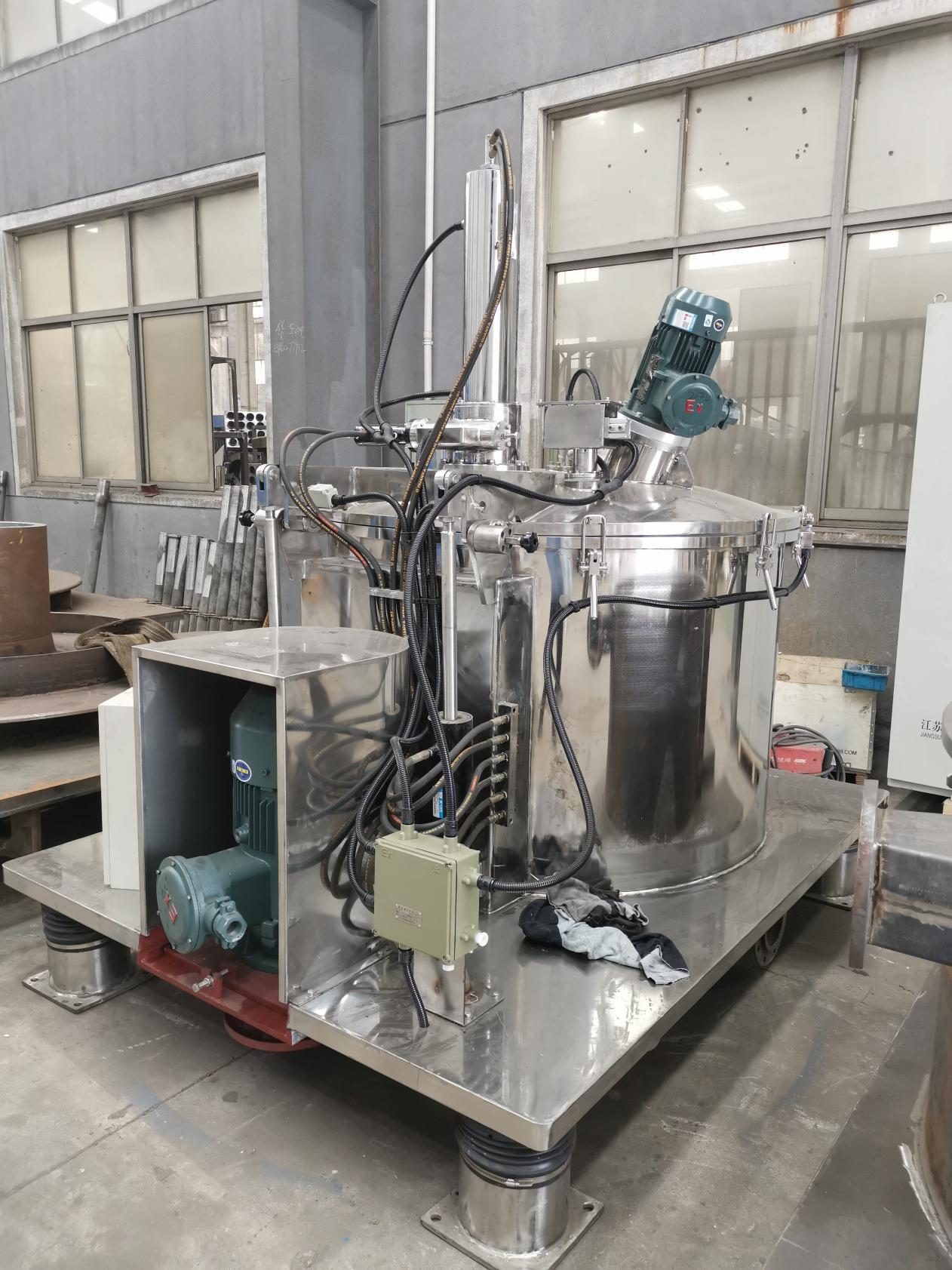

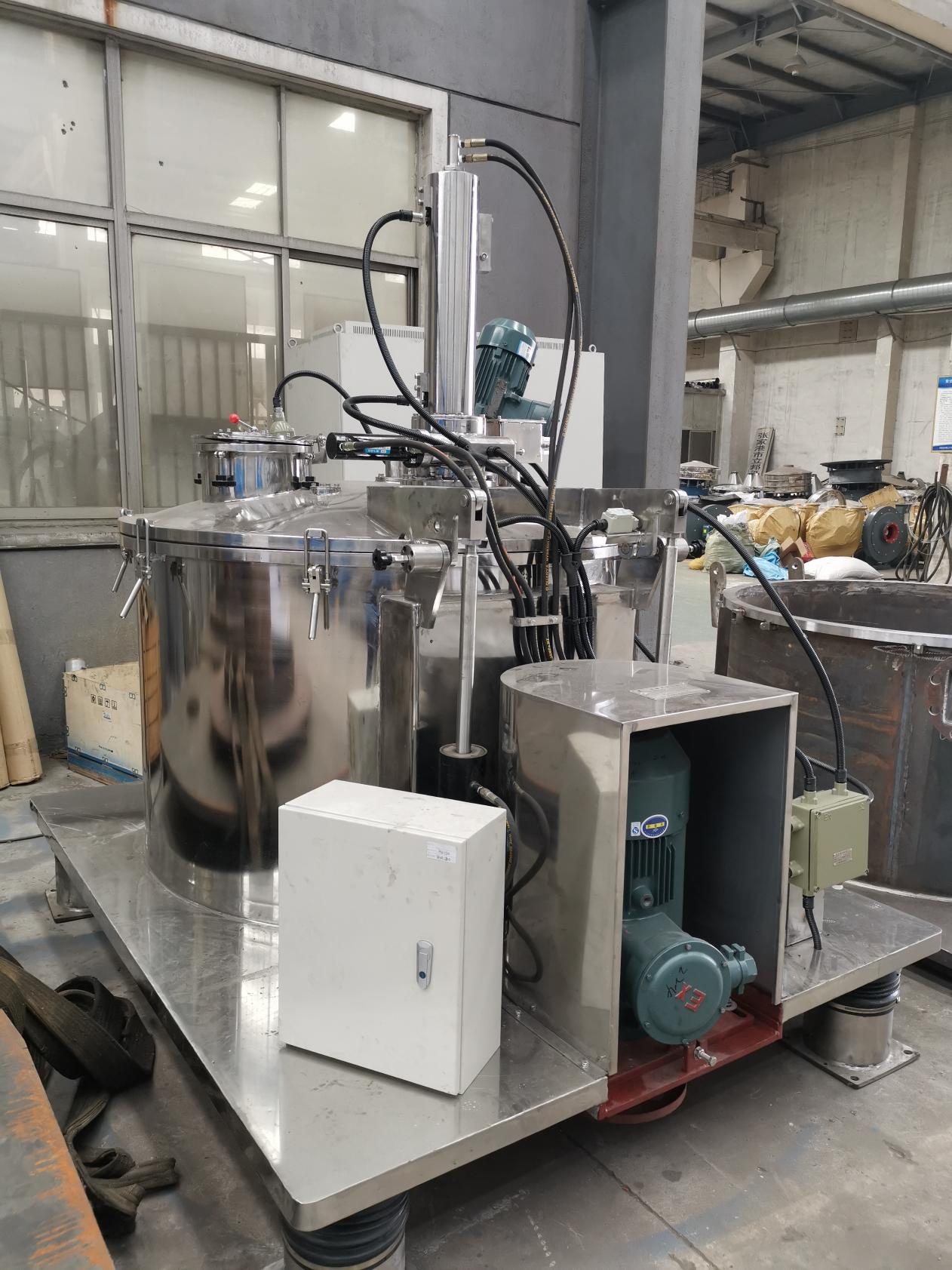

The LGZ series is a high-performance fully automatic vertical scraper bottom-discharge centrifuge from Jiangsu Shengli Centrifuge Manufacturing Co., Ltd., engineered for high-cleanliness, highly automated production environments. With variable-frequency speed control and PLC programming, it achieves monitored, unattended operation through feeding, primary filtration, washing, fine filtration, and discharge. Its fully enclosed structure and nitrogen-protection system effectively isolate flammable or explosive media, and the machine is built to GMP hygiene standards—an ideal choice for separating APIs, pharmaceutical intermediates, and high-end fine chemicals.

Working Principle

The LGZ operates under PLC control with programmable recipes, monitoring every stage of feeding, primary filtration, washing, fine filtration, and discharge. Level control ensures accurate feeding; during separation and washing, the bowl follows the process curve under variable-frequency drive with a continuously adjustable separation factor; during discharge, the scraper peels the cake layer by layer under pneumatic or hydraulic actuation and ejects it through the bottom opening. A non-contact braking system eliminates mechanical friction dust, while optional CIP clean-in-place and SIP sterilize-in-place systems support pharmaceutical production validation.

Product Applications

Suitable for pharmaceutical, biotechnology, fine chemical, and food production lines requiring GMP compliance. It is particularly well-suited for toxic, hazardous, volatile, highly active, or high-cleanliness pharmaceutical intermediates and APIs, such as antibiotics, vitamins, cephalosporin and penicillin products, amino acids, and high-purity crystalline materials.

Industry Application Cases & Market Insights

As global cGMP oversight tightens and the highly potent API (HPAPI) market expands rapidly, pharmaceutical manufacturers now demand systematic capabilities from centrifuges—containment, CIP/SIP, and batch-record traceability—and "isolator-grade" enclosed centrifuges are becoming the standard for new API plants. The LGZ series from Jiangsu Shengli Centrifuge Manufacturing Co., Ltd. benchmarks international pharma-equipment standards with its fully enclosed structure, nitrogen protection, non-contact braking, and optional CIP/SIP systems. Backed by process-validation data from the company's materials laboratory, it helps pharmaceutical customers worldwide pass GMP audits at a more competitive investment cost, and has entered fast-growing generics markets such as India and Southeast Asia through the company's export network.

Key Advantages

• Full-process PLC control with continuously adjustable separation factor for unattended operation.
• Non-contact braking avoids friction dust contamination and protects product purity.
• Optional CIP/SIP online cleaning and spray systems simplify cleaning validation.
• Fully enclosed structure with nitrogen protection for explosion-proof duties with flammable solvents.
• Multiple safety interlocks: over-vibration, motor overload, and lid-opening protection.
• GMP-compliant design and manufacturing with polished, crevice-free, easily cleaned surfaces.

Selection & Customization Services

Jiangsu Shengli Centrifuge Manufacturing Co., Ltd. offers tailor-made configurations based on material characteristics: product-contact parts in SUS304, 316L, 904L, duplex steel, titanium, or Hastelloy; optional RF admittance level control, gas-assisted scrapers, and hydraulic actuation; and GMP-compliant design, manufacturing, and documentation support (material certificates, surface-roughness reports, etc.). Customers are welcome to send material samples for bench-scale testing to determine optimal process parameters with data.
